Summary
This paper proposes a language grounding model based on a simulated 3D environment. It used an existing 3D environment from Deepmind, and proposed a model to learn language (word-object/color/size mapping).
Simulated 3D World The agent can move around in the environment and receives visual input and texial instruction to follow like- pick the pink striped ladder. The environment consists of one or two rooms with different shaped/colored objects of varied size as show in following figure. Objects and rooms are configured programmatically with random sampling.

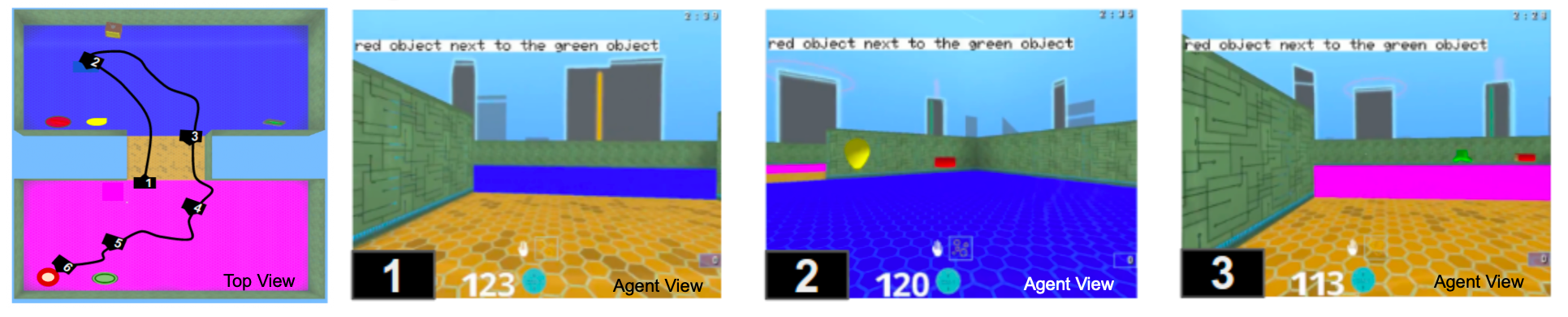

Fig: Top view of the room layout (left most) and agent views on different positions (Right 3 images). Black path is agents trajectory for the instruction pick the red object next to the green object
Agent Model Design The agent model consists of four modules. A vision module (V), Language module (L), Mixing module (M), and Action module (A). It also has auxiliary unsupervised models consisting a Temporal autoencoding (tAE), Language prediction module (LP), Reward prediction module (RP) and a Value replay (VR) modules. The environment provide positive rewards for completing the instruction and negative reward for picking up wrong objects.

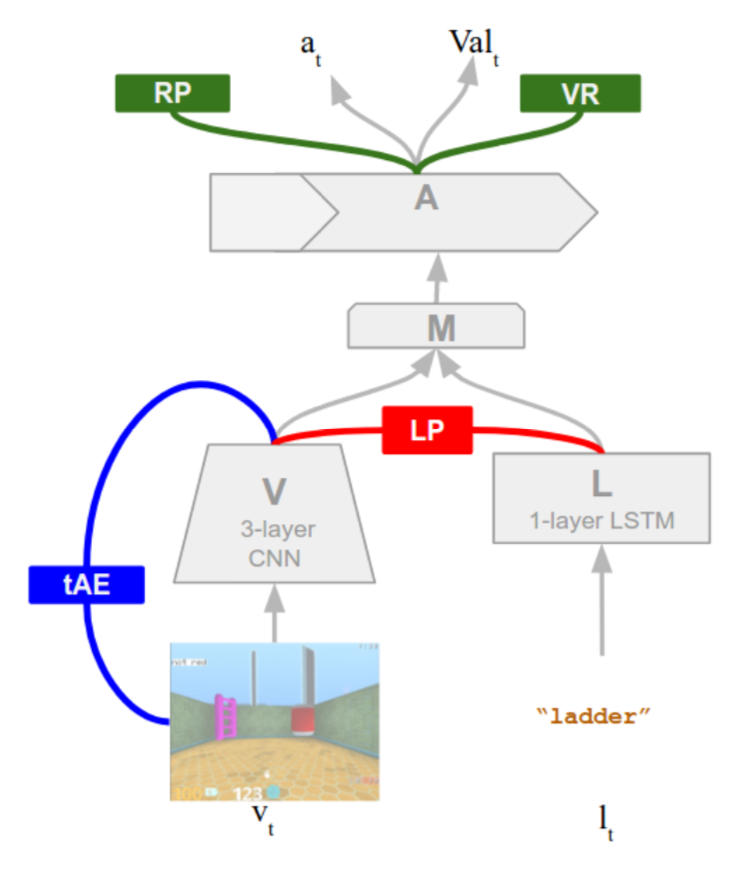

Fig: Model design.
V encodes the current visual input and L encodes instruction string. Mixing module M determines how these signals are combined before they are passed to two-layer LSTM action module A. The tAE module predics the nect visual environment based on prior visual input and choosen action. LP module estimates instruction words, given the visual observation.
Experiments
The paper showed many experiments and showed promising results.

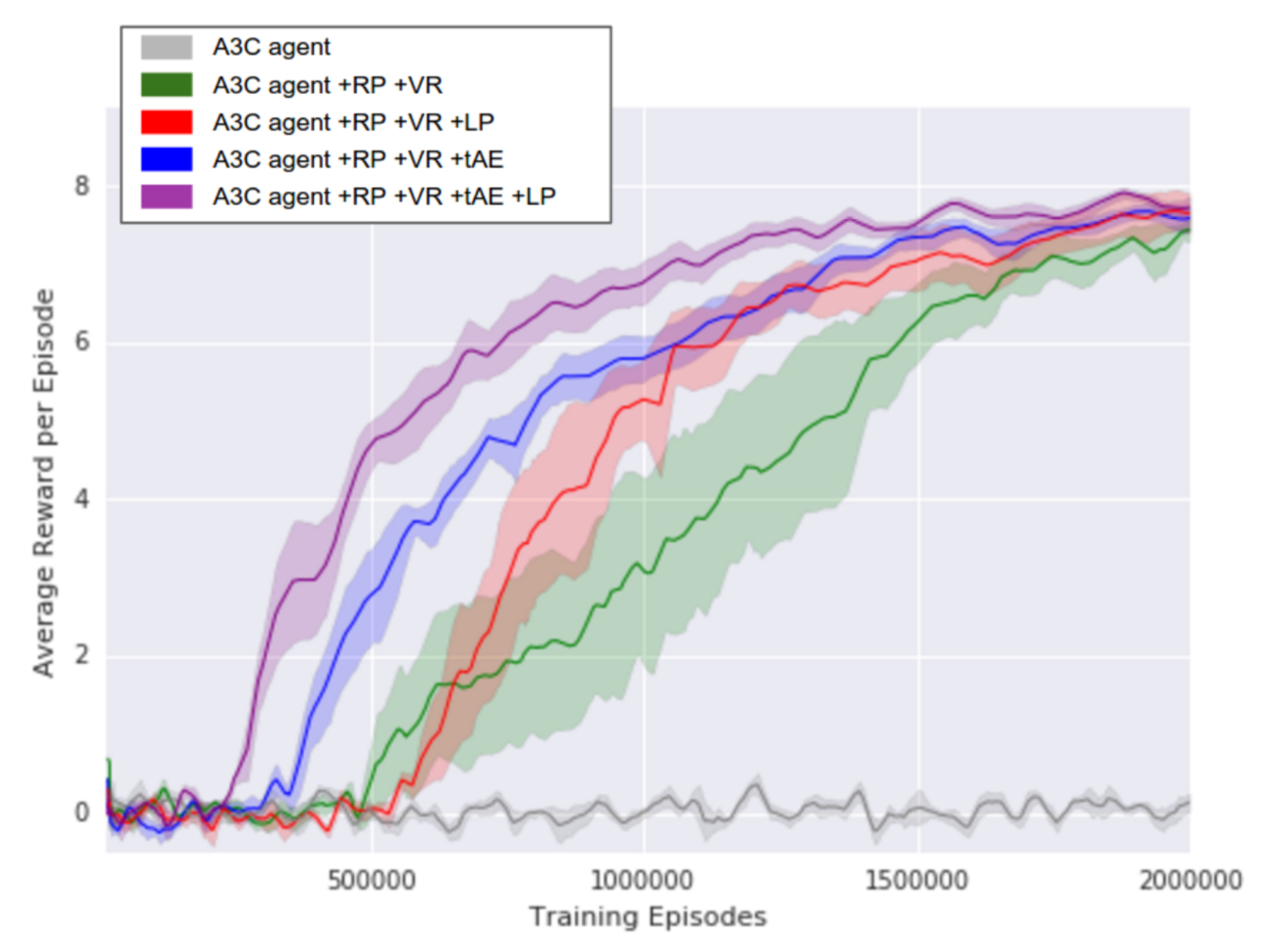

Fig: Results of different module combination. The agent with only reinforcement learning didn’t show any learning behaviour. It performed best when all unsupervised auxiliary networs were combined.

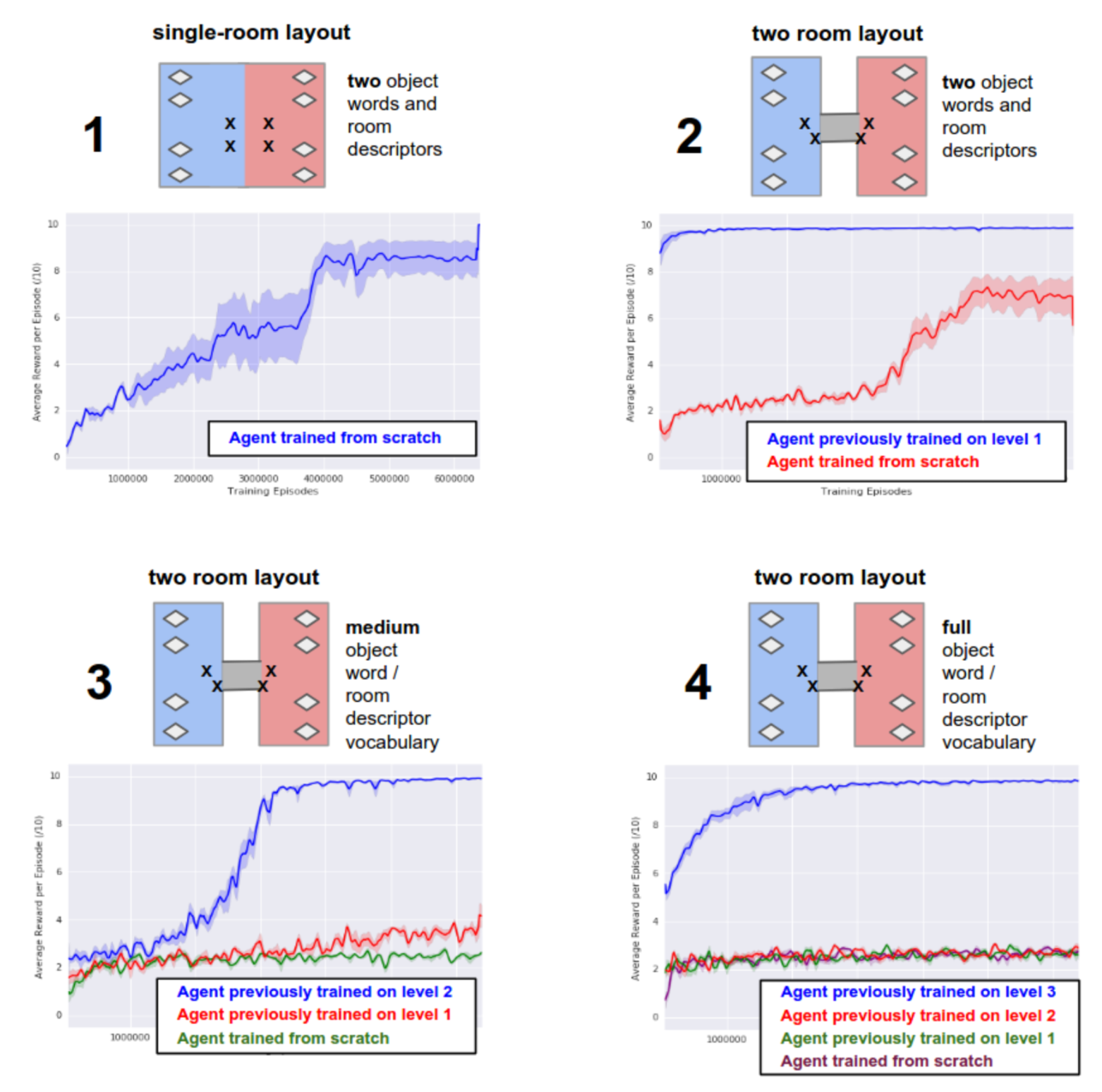

Fig: Results of curriculum learning. It showed, agent performs better with training on previous level.
Good things They combined reinforcement learning and unsupervised networks to achieve language grounding. The agent to some extend learnd the semantics and were able to generalize well on new words. Also they focused on continuous, noisy sensory input based environment, that human baby faces.
Limitation The model still is dependent on the explicit rewards from the environment. Designing explicit rewards for more complex environment will be troublesome. Hence the model may not be applicable for human level AI.
Some demo of this work can be found here.
